C10D205GR
Product number:
C10D205GR
Product description:
High Aesthetics + High Efficiency: Where Architecture Meets Power Generation

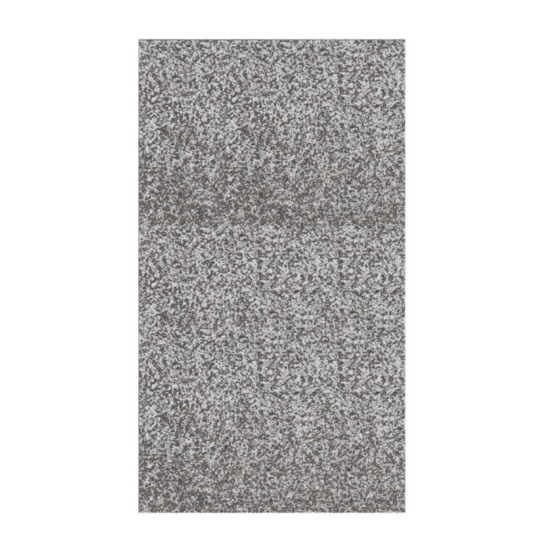

✅Architectural Versatility at Its Best：Featuring a granite texture, this module doubles as a building curtain wall or roofing material—no more clunky, industrial-looking traditional solar panels. It blends seamlessly with diverse architectural styles, balancing visual appeal and practicality flawlessly.
✅Reliable High-Performance Power：Equipped with 40 pieces of 182mm PERC high-efficiency solar cells, it delivers a 205W peak power under STC (Standard Test Conditions) with a 12.8% module efficiency. The 1500V high-system voltage design ensures strong, steady power output to meet a building’s daily electricity needs.
✅Robust for Extreme Environments：Boasting an IP67 waterproof junction box and 5400Pa positive/negative load resistance, it operates stably across a wide temperature range (-40°C to +85°C). Whether it’s scorching heat, freezing cold, or heavy rain, its durability never wavers.
✅Flexible & Easy Installation：Comes with standard MC4 connectors and customizable 4mm² cables. At just 1600×1000×14mm (56kg), its slim, lightweight design fits effortlessly into curtain wall, rooftop, and other installations—no extra space required.
C10D205GR
Product description:
High Aesthetics + High Efficiency: Where Architecture Meets Power Generation
✅Architectural Versatility at Its Best：Featuring a granite texture, this module doubles as a building curtain wall or roofing material—no more clunky, industrial-looking traditional solar panels. It blends seamlessly with diverse architectural styles, balancing visual appeal and practicality flawlessly.
✅Reliable High-Performance Power：Equipped with 40 pieces of 182mm PERC high-efficiency solar cells, it delivers a 205W peak power under STC (Standard Test Conditions) with a 12.8% module efficiency. The 1500V high-system voltage design ensures strong, steady power output to meet a building’s daily electricity needs.
✅Robust for Extreme Environments：Boasting an IP67 waterproof junction box and 5400Pa positive/negative load resistance, it operates stably across a wide temperature range (-40°C to +85°C). Whether it’s scorching heat, freezing cold, or heavy rain, its durability never wavers.
✅Flexible & Easy Installation：Comes with standard MC4 connectors and customizable 4mm² cables. At just 1600×1000×14mm (56kg), its slim, lightweight design fits effortlessly into curtain wall, rooftop, and other installations—no extra space required.
| STC | Standard Test Conditions：Irradiation 1000W/㎡，Cell Temperature 25℃，AM1.5 |
| Color | Granite |
| Rated Maximum Power(Pmax/W) | 205 |
| Power Tolerance | 5% |
| Maximum Power Voltage(Vmp/V) | 46.8 |
| Maximum Power Current(lmp/A) | 4.38 |
| Open Circuit Voltage(Voc/V) | 54.8 |
| Short Circuit Current(lsc/A) | 4.58 |
| Module Efficiency[%] | 12.8% |
| NOCT | Normal Operating Cell Temperature（NOCT）：800W/㎡，20℃，AM1.5，1m/s |
| Color | Granite |
| Rated Maximum Power(Pmax/W) | 189 |
| Maximum Power Voltage(Vmp/V) | 43.4 |
| Maximum Power Current(lmp/A) | 4.45 |
| Open Circuit Voltage(Voc/V) | 50.85 |
| Short Circuit Current(lsc/A) | 4.64 |
| Dimensions（mm) | 1600*1000*14 |
| Weight(kg) | 56 |
| Cell | 182PERC |
| Number of cells | 40 |
| Front Glass（mm） | 6 |
| Back Glass（mm） | 6 |
| Junction Box | IP67 |
| Connector | MC4 |
| Cable Specifications | 4mm²，300mm,Customization available |
| Packing Quantity | / |
Certificates:
(1)IEC61215/IEC61730/UL61730
(2)IEC61701/IEC62716/IEC60068
(3)IEC62941/IEC62804
(4)ISO9001:2015: Quality Management System
(5)ISO14001:2015: Environment Management System
(6)ISO45001:2018: Occupational health and safety management system
