Products >> BIPV >> Imitation Curtain Walls for Stone- PV Glass Modules

C10D215RB

Online Inquiry

Product number:

C10D215RB

Product description:

Engineered for building developers and residential project owners favoring traditional or industrial architectural styles, this Red Brick Texture BIPV module fuses classic aesthetic charm with reliable photovoltaic performance, achieving seamless integration of building design and clean energy generation.

Core Selling Points:

✅ Architectural Aesthetic Compatibility

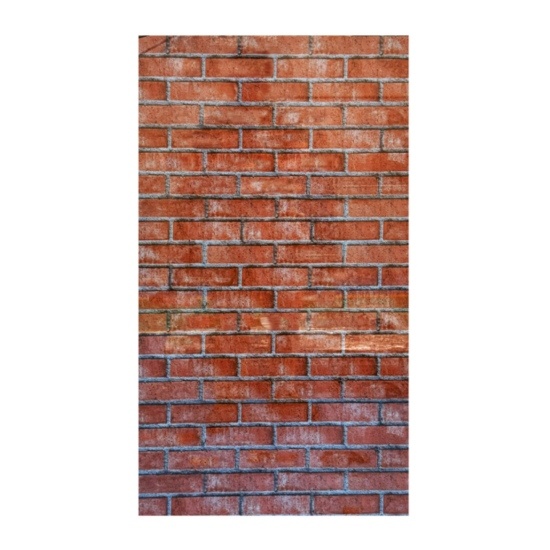

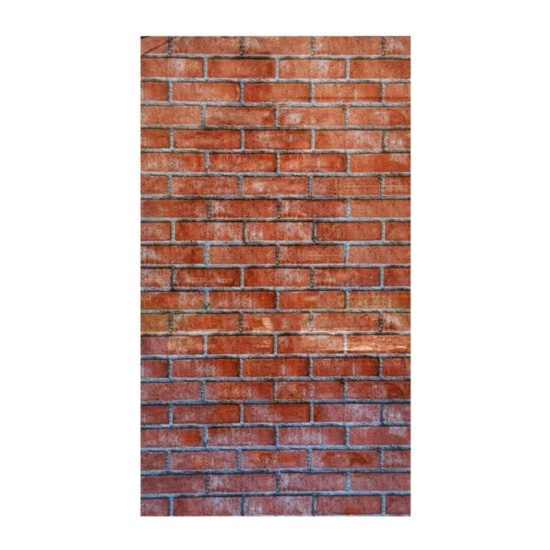

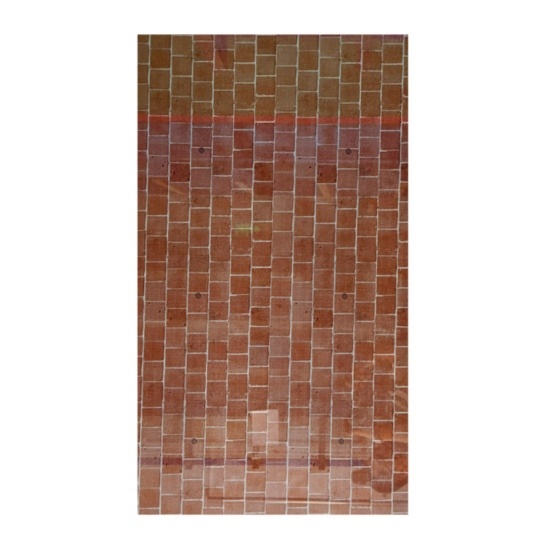

Iconic red brick finish perfectly matches traditional residential buildings, industrial-style commercial facades and retro building complexes; 6mm double-sided tempered glass ensures long-lasting color stability and excellent light transmittance, enabling smooth integration into exterior walls, sloped roofs and low-rise building curtain walls without compromising the original architectural style.

✅ Stable High-Quality Power Generation

Delivers consistent energy output with 215W STC-rated peak power and a 13.4% module efficiency; maintains reliable performance under real-world NOCT conditions with a 199W peak power. Equipped with 40 premium 182PERC cells, paired with a -0.38%/℃ Pmax temperature coefficient, ensuring minimal power loss in temperature fluctuations for steady energy yield.

✅ Extreme Environment Durability

Built to withstand harsh climate and structural pressure: wide operating temperature range of -40℃ to +85℃, 5400Pa front/back maximum static load for wind and snow resistance; IP67-rated junction box, Class II safety protection level and Class A fire rating, fully complying with strict building safety and durability standards.

✅ Flexible On-Site Installation

Optimized dimensions of 1600×1000×14mm and 56kg weight fit most brick building profiles; standard MC4 connectors enable quick connection to existing solar systems, 4mm² 300mm standard cables or customizable specifications reduce on-site construction time and adapt to various installation scenarios of brick structure buildings.

Explore the detailed technical specifications below to learn more about the performance of this red brick texture BIPV module for your traditional or industrial style building project.

**Electrical Specification[STC*]**
STC	Standard Test Conditions: Irradiation 1000W/m², Cell Temperature 25℃, AM1.5
Color	Red Brick
Rated Maximum Power(Pmax/W)	215
Power Tolerance	5%
Maximum Power Voltage(Vmp/V)	46.8
Maximum Power Current(lmp/A)	4.59
Open Circuit Voltage(Voc/V)	54.8
Short Circuit Current(lsc/A)	4.8
Module Efficiency[%]	13.4%

**Electrical Specification[NOCT*]**
NOCT	Normal Operating Cell Temperature（NOCT）：800W/㎡，20℃，AM1.5，1m/s
Color	Red Brick
Rated Maximum Power(Pmax/W)	199
Maximum Power Voltage(Vmp/V)	43.4
Maximum Power Current(lmp/A)	4.65
Open Circuit Voltage(Voc/V)	50.85
Short Circuit Current(lsc/A)	4.87

**Mechanical parameters**
Dimensions（mm)	1600100014
Weight(kg)	56

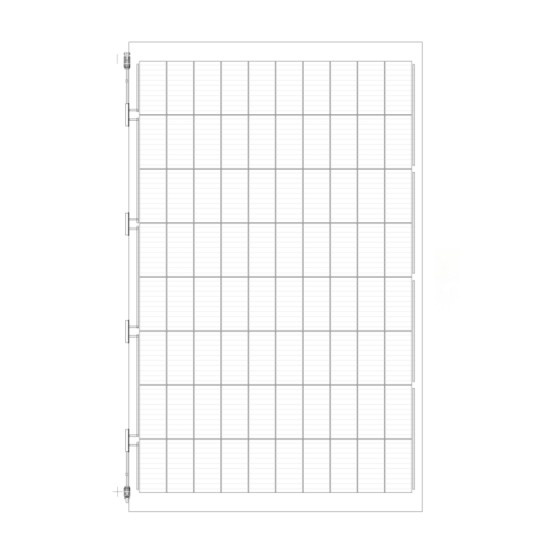

Cell	182PERC
Number of cells	40
Front Glass（mm）	6
Back Glass（mm）	6
Junction Box	IP67
Connector	MC4
Cable Specifications	4mm²，300mm,Customization available
Packing Quantity	/
