Looking for a quality product for your next project?

Here we have an excellent team and master the core technology to create maximum benefits for customers.

Solutions

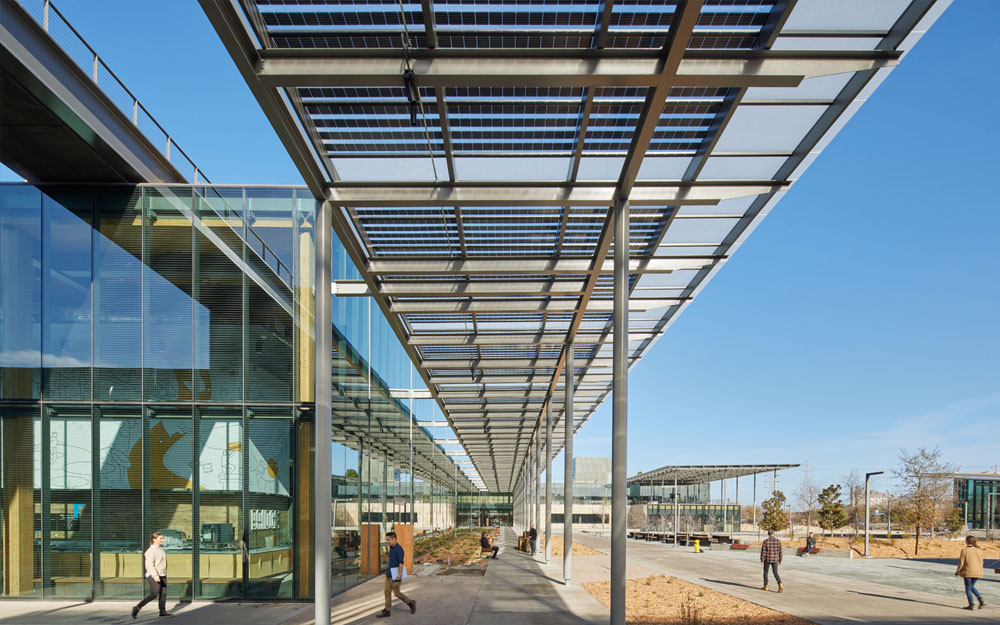

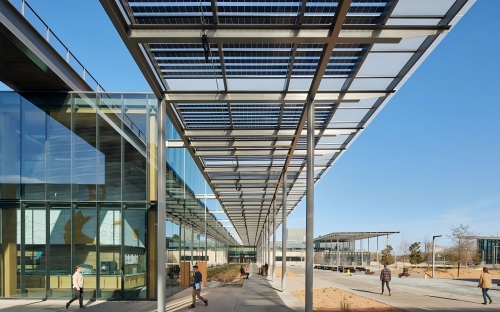

Global Energy Solutions Experience comprehensive, one-stop renewable energy solutions with ONBIPV. From cutting-edge BIPV integration to storage and inverters, we deliver customized, high-efficiency systems globally. Transform your property into a sustainable asset with our premium engineering and cost-effective services.

Hot Products

Jinko Tiger Neo JKM440N-54HL4R-440Wp Full black, bifacial

 All black Bifacial module with double glass and N-type TOPCON modules for maximum electricity output


Product number:
Jinko Tiger Neo JKM440N-54HL4R-440Wp


Product information:
Specifications:
Module connector: EVO2
STC power: 440Wp
Colour of frame: Black
Cell technology: bifacial
Number of cells: 108 pcs half cut
Dimension of module: 1762x1134x30mm
Weight: 24.5kg
Cable length: 1200/1200mm


Mechanical Characteristics:
Cell Type: N type Mono-crystalline
No. of cells: 108 (54x2)
Dimensions: 1762x1134x30mm
Weight: 25.4kg
Front Glass: 2.0mm, Anti-Reflection Coating
Back Glass: 2.0mm, Heat Strengthened Glass
Frame: Anodized Aluminium Alloy
Junction Box: IP68 Rated
Protection Class: Class II
IEC Fire Type: Class C
Output Cables: TUV 1X4.0mm2(+); 400mm, (-): 200mm or Customized Length










































Packaging Configuration:
(Two pallets=One stack): 1792x1120x1249mm
Packing detail: 36pcs/pallets, 72pcs/stack, 936pcs/40'HQ Container


Warranty:
1) 25 year product warranty
2) 30 year linear power warranty
3) 1% first year degradation
4) 0.4% annual degradation over 30 years


Product description
N-Type Technology:
N-Type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance.
HOT3.0 Technology:
N-type modules with JinkoSolar's HOT 3.0 technology offer better reliability andefficiency.
Dual-Sided power generation:
Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE.
Mechanical Load Enhanced:
Certified to withstand: 5400 Pa front side max static test load 2400 Pa rear side max static test load.
SMBB Technology:
Better light trapping and current collection to improve module power output and reliability.
Anti-PID guarantee:
Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.

Certificates:
1) IEC671215(2016) / IEC61730(2016)
2) IEC61701 / IEC62716 / IEC60068 / IEC62804
3) ISO9001:2015: Quality Management System
4) ISO14001:2015: Environment Management System
5) ISO45001:2018: Occupational health and safety management systems
6) PV CYCLE


Manufacturer Inform...
View More>>
MV PCS Station B-S-5000C
Product number:B-S-5000C   Product Parameters   1)DC Parameters Number of DC input channels: 2/4 DC voltage operating range: 1000~1500V   2) AC Parameters Total rated power: 5000kW Rated voltage: 690Vac Isolation mode: Transformer isolation   3) On-Grid Mode Rated grid voltage: 6~35kV(customizable) Rated grid frequency: 50Hz / 60Hz THDi: <3% Power factor: -1~1   4) Transformer Parameters Rated capacity: 5250kVA Transformer type: Oil-immersed transformer LV/MV voltage: 0.69 / (6~35)kV Vector group:Dyn11yn11 Cooling type: ONAF   5) System Parameters Dimensions (W x H x D): 6058*2896*2438mm Weight: 24t Operating temperature: -40~+60℃ (no derating within 45℃) Protection degree: IP54(PCS IP66) BMS communication: RS485/CAN EMS communication: Ethernet Interface Communication protocol: Modbus TCP / IEC 61850 / IEC 104 / Modbus RTU / CAN 2.0 Standard compliance: RoHS, IEC 62477-1, IEC 61000-6-2, IEC 61683, VDE 4120, EN 50549, etc Grid support: H/LVRT, Frequency adjustment function, Voltage adjustment function, Inertia response, etc. ...
View More>>
